Two adjustable fixtures for ceilings and track.

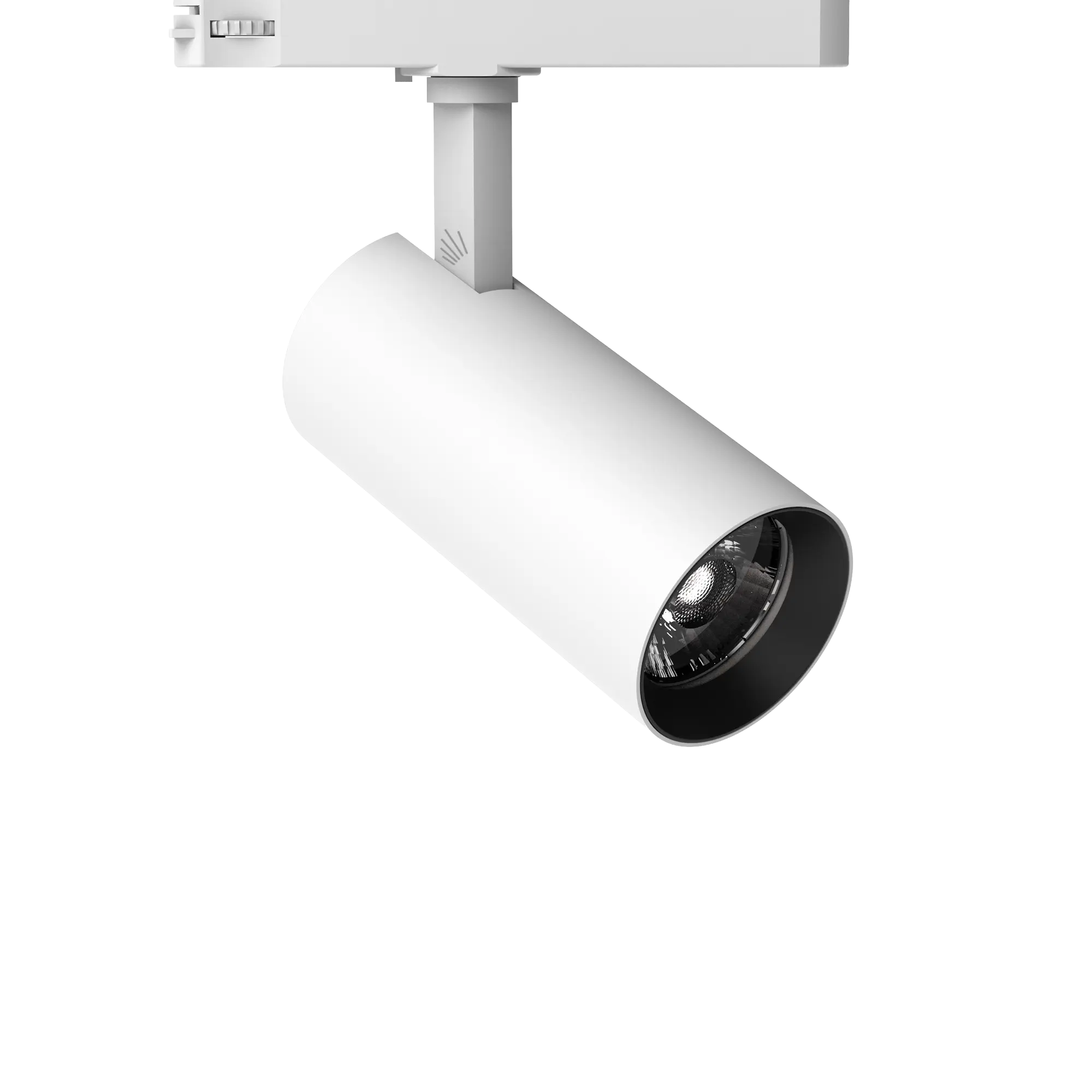

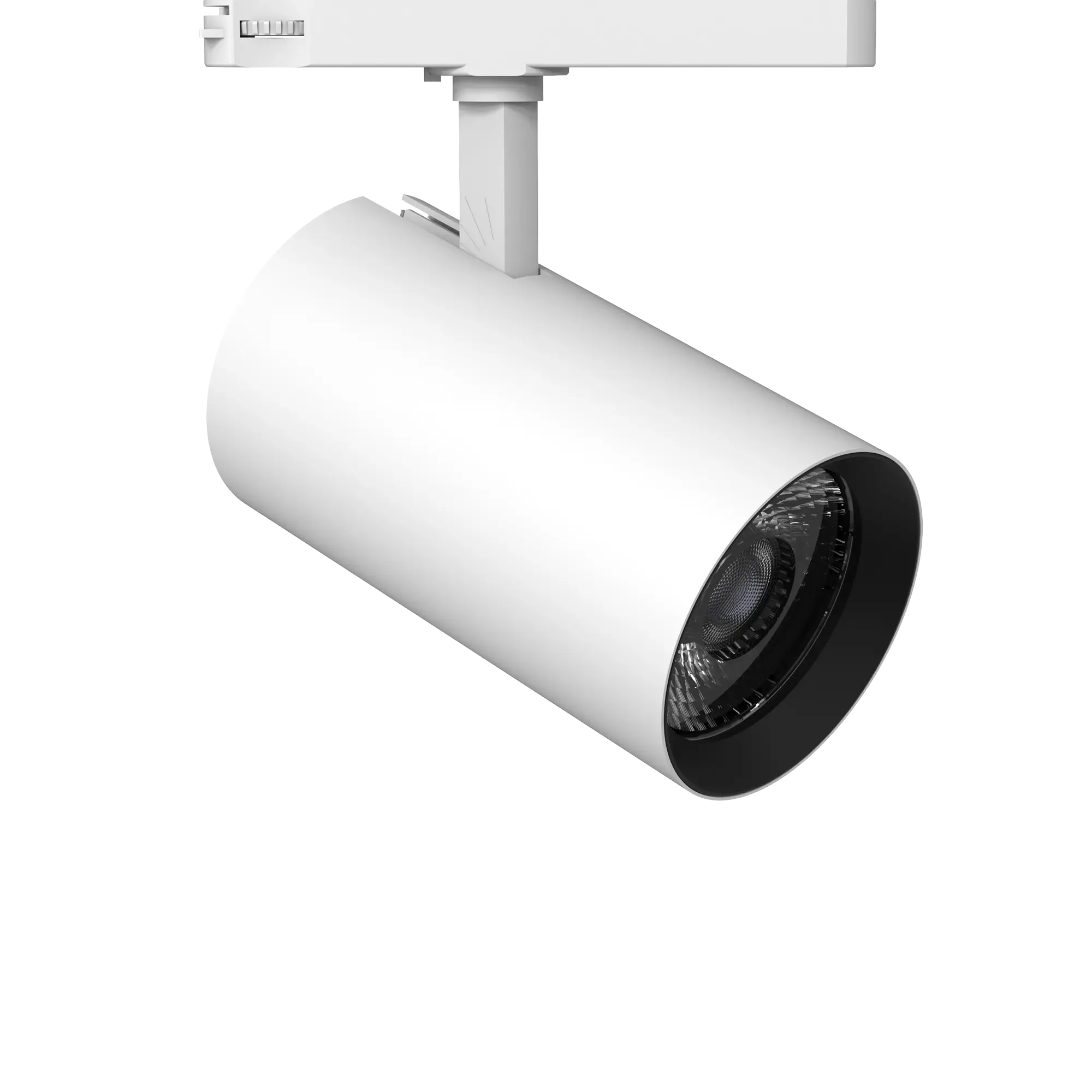

Low glare, adjustable spotlight for ceilings and track systems.
40, 64 or 90mm

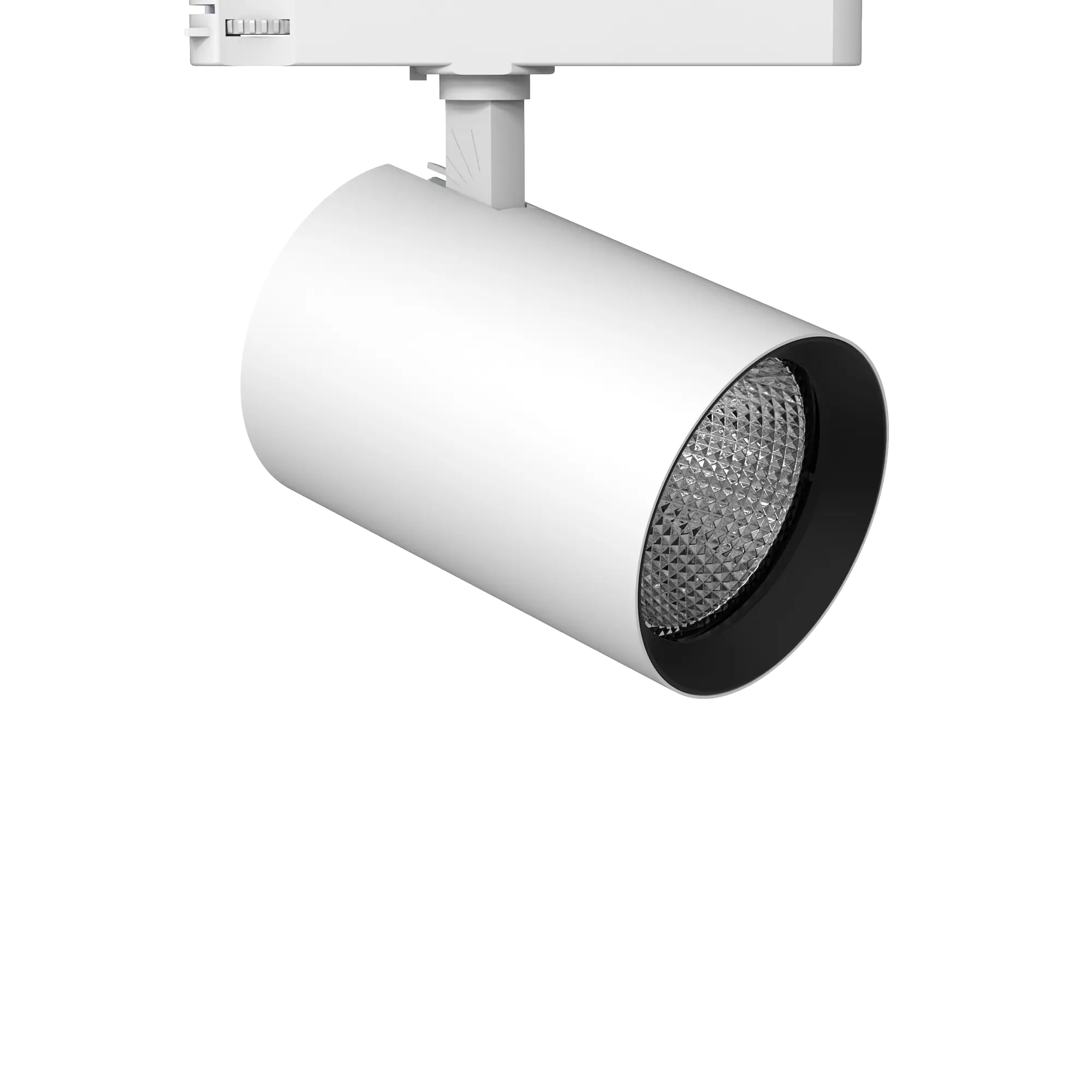

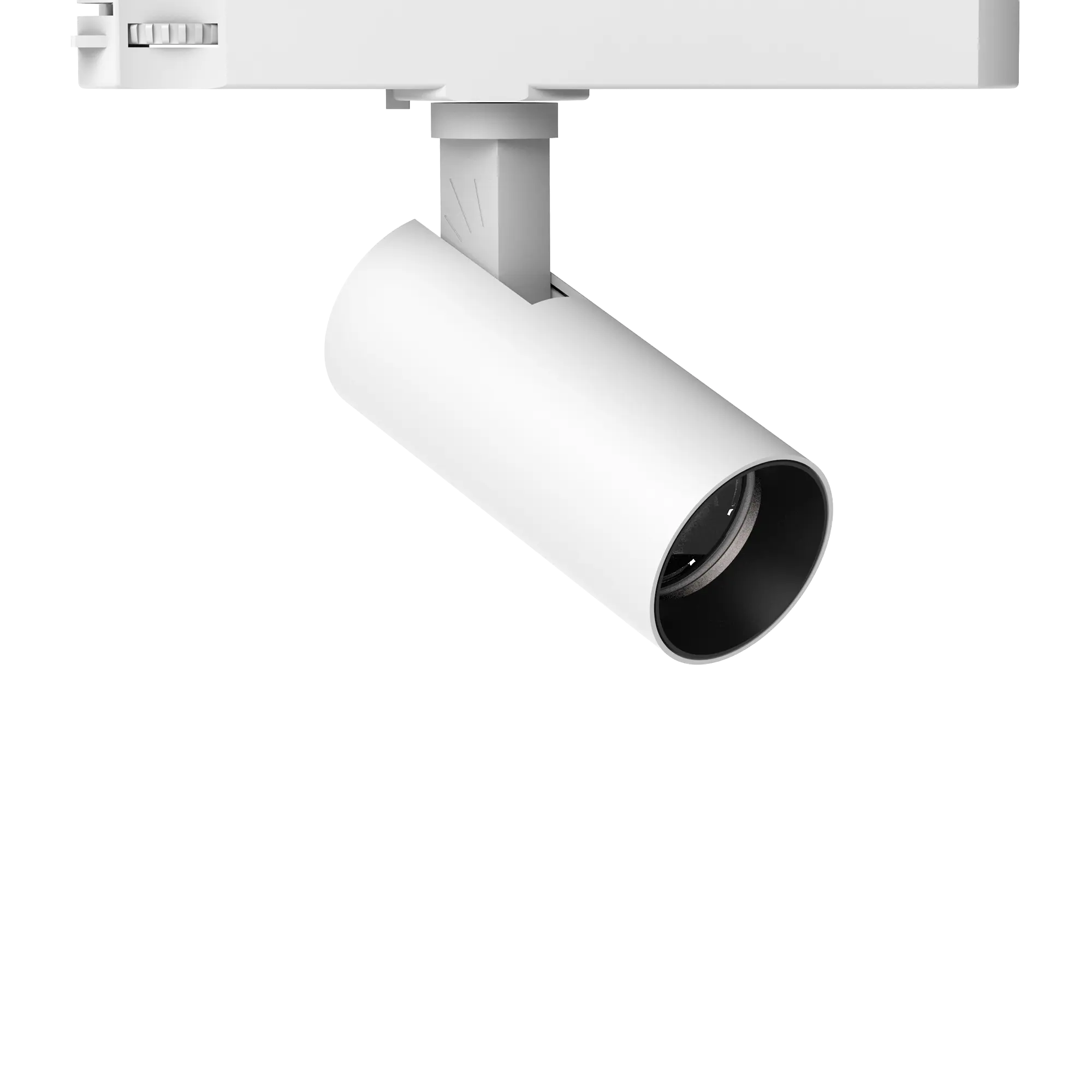

Compact, adjustable spotlight for ceilings and track systems.
40, 64 or 90mm
Compact or standard, every Diffraxion spotlight is configured to order. Pick the fixture below, then set size, output, colour, optics and finish in the Project Builder.
40, 64 or 90mm
Both spotlights come in 40, 64 and 90mm outer diameters.
600 to 4,500lm
Source outputs from 600 to 4,500lm, with custom lumen packages available.
90 or 98 CRI
High efficiency 90CRI as standard, with full spectrum 98CRI as an option on both fixtures.
2400K to 4000K, plus tunable
2400K, 2700K, 3000K and 4000K as standard, with 1800 to 4000K and 2700 to 6000K tunable white and custom CCTs available.
15 to 50 degrees, plus wall wash
Narrow 15, medium 24, wide 36 and flood 50 degree lenses, plus an asymmetric wall wash lens, on both fixtures.
Black, White or Custom
Black and white trims as standard, with custom trim finishes available.
Track, surface or semi-recessed

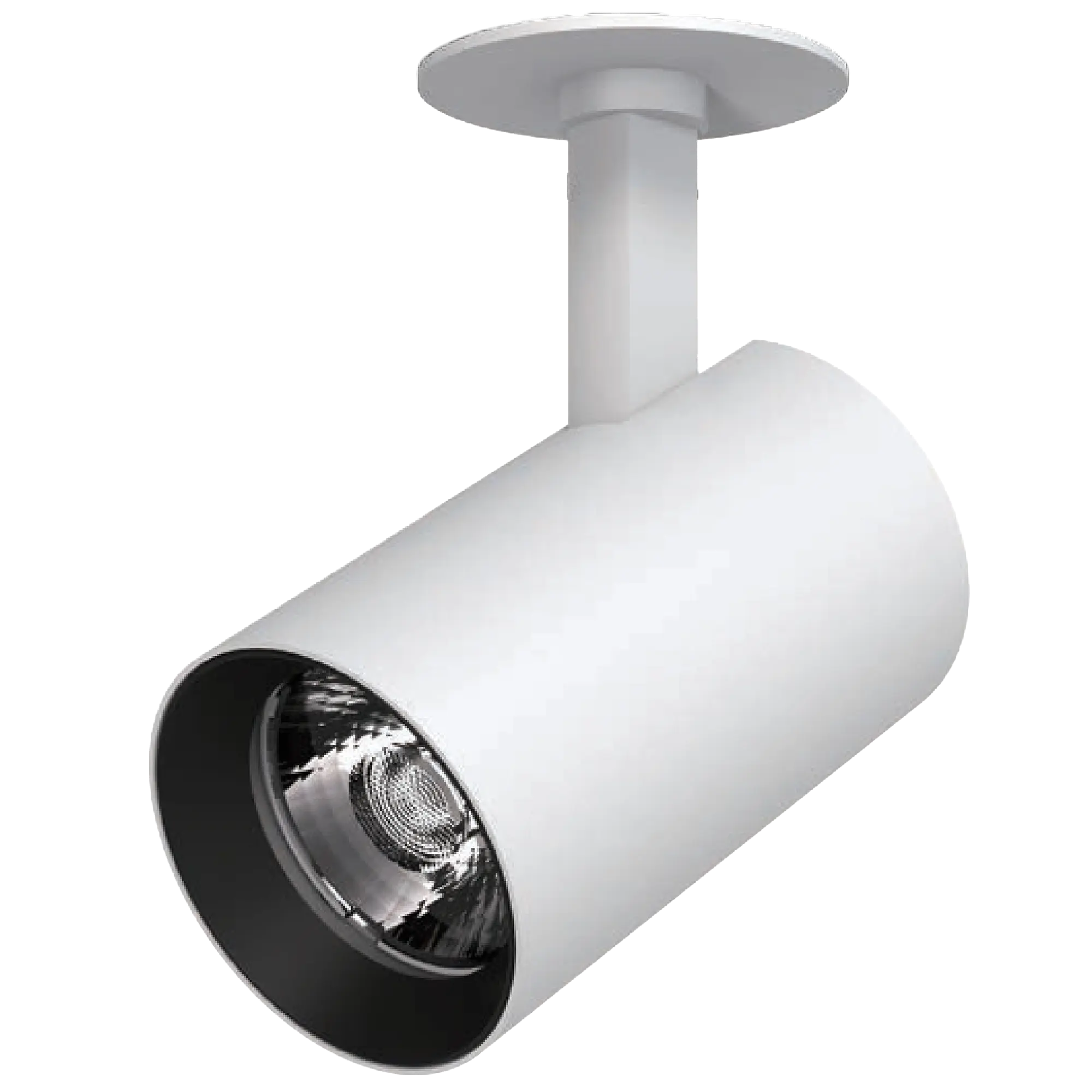

Mains AC track and 48V DC track adapters, a surface mount ceiling rose, or a semi-recessed trim.
Black, Silver, White or Custom
Black, silver and white reflectors as standard, with custom finishes or no reflector available.
Ten driver options
Non-dim, TRIAC and DALi through to DCNet, BubblyNet and Casambi wireless control, plus three hour emergency variants and custom drivers.
The full optical toolkit
Asymmetric snoots, barn doors, gobo framing devices, honeycomb louvres, oval filters, soft glass lenses and a 15 to 55 degree zoom lens.
Mains AC and 48V DC track adapters straight out of the box.
The standard spotlight is engineered for low glare visual comfort.
Gobo and framing devices shape the beam to the millimetre.
A 15 to 55 degree zoom lens covers changing displays.
The compact fixture keeps the same control in a smaller body.
+
Build your fixture in the online configurator, download the spec sheet, and send it to your local distributor. They handle pricing, lead times and delivery from there.
+
Yes. Every fixture page carries IES and LDT files for each diameter, lumen package and beam angle, free to download for your lighting calculations.
+
Yes. The configurator only shows options that work together, so incompatible combinations are filtered out as you build.
+
Yes. Add as many fixtures as you need to a single project and download one combined spec pack for the whole job.
Download the technical datasheet for each fixture in this range.
IES and LDT files for lighting design software, organised by fixture, output and beam angle.
