Five recessed fixtures, one configurable platform.
Square trim, recessed, fixed ceiling downlight.
32, 42, 52 or 62mm

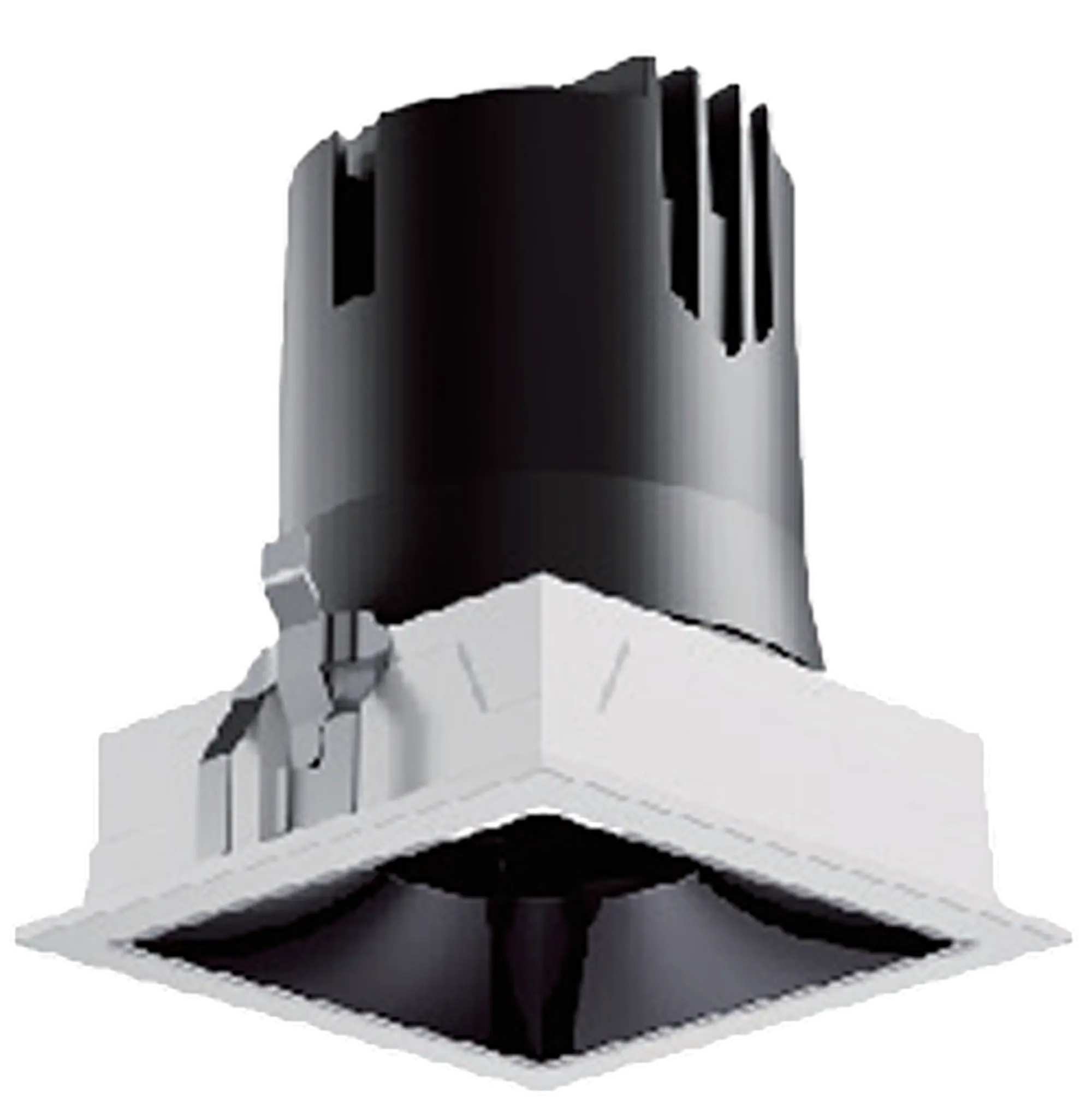

Square trim, recessed, adjustable downlight with 25 degree tilt and 360 degree rotation.
55, 75 or 95mm cut-out
Recessed, IP68 rated ceiling downlight.
70 or 94mm

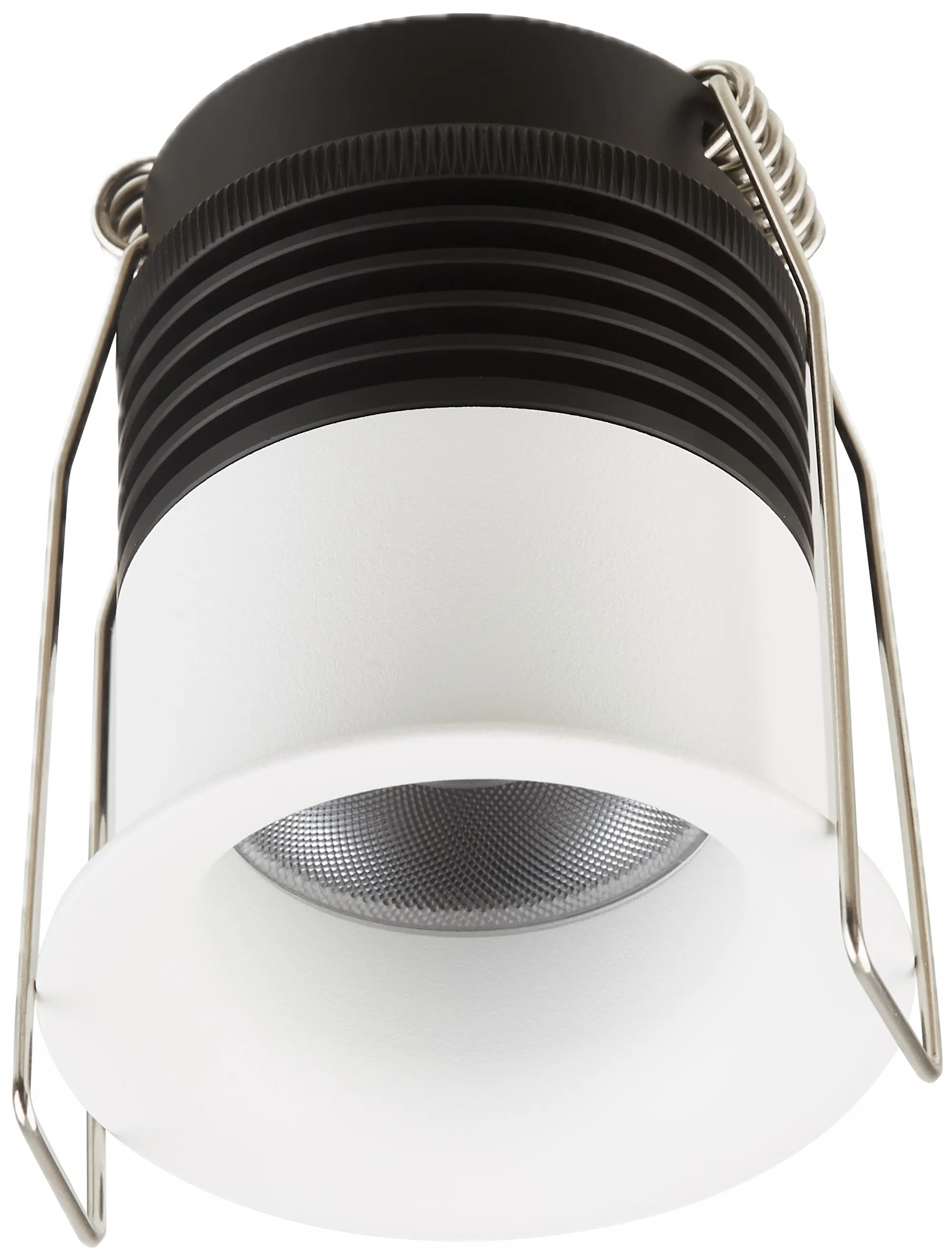

Recessed, fixed ceiling downlight.
32, 42, 52 or 62mm

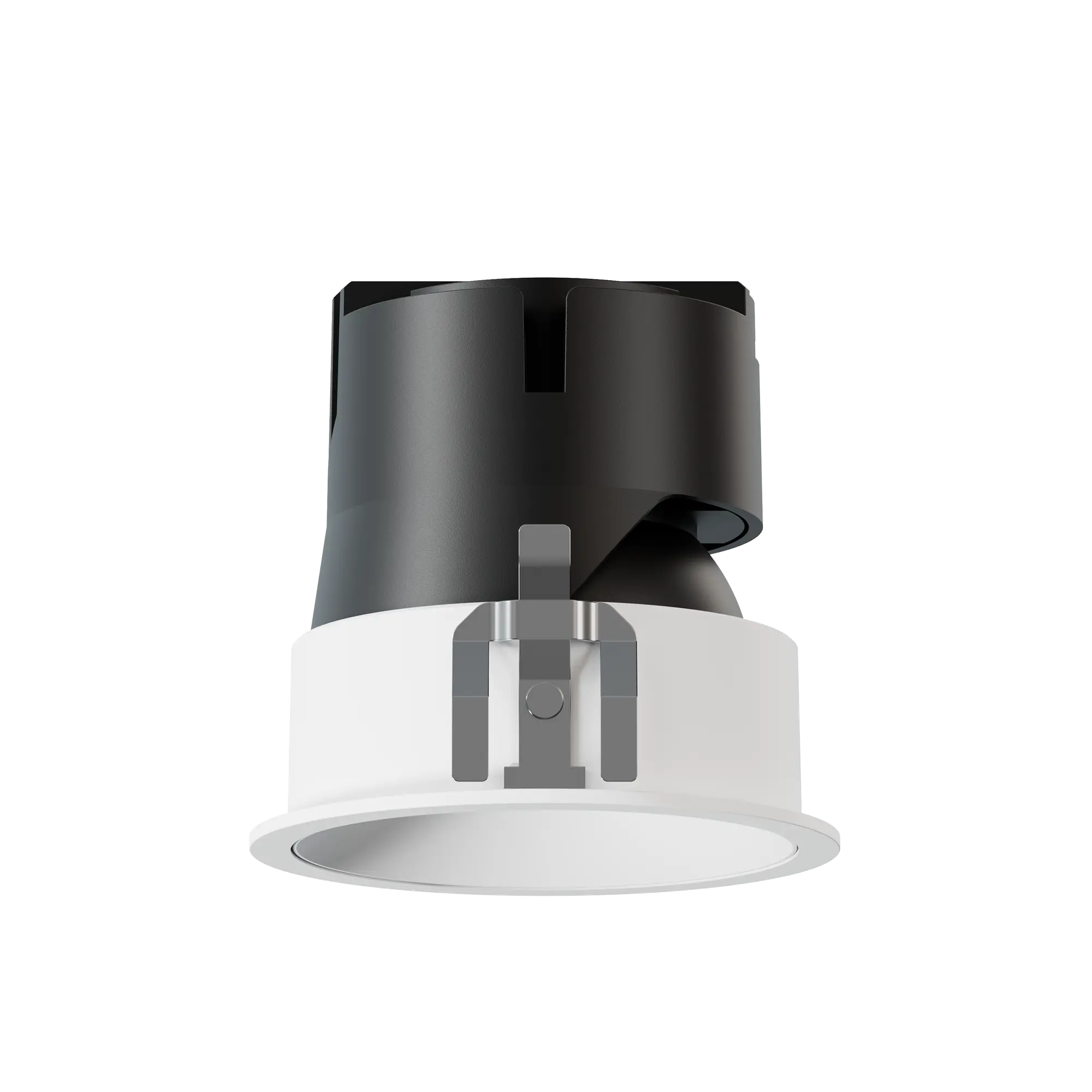

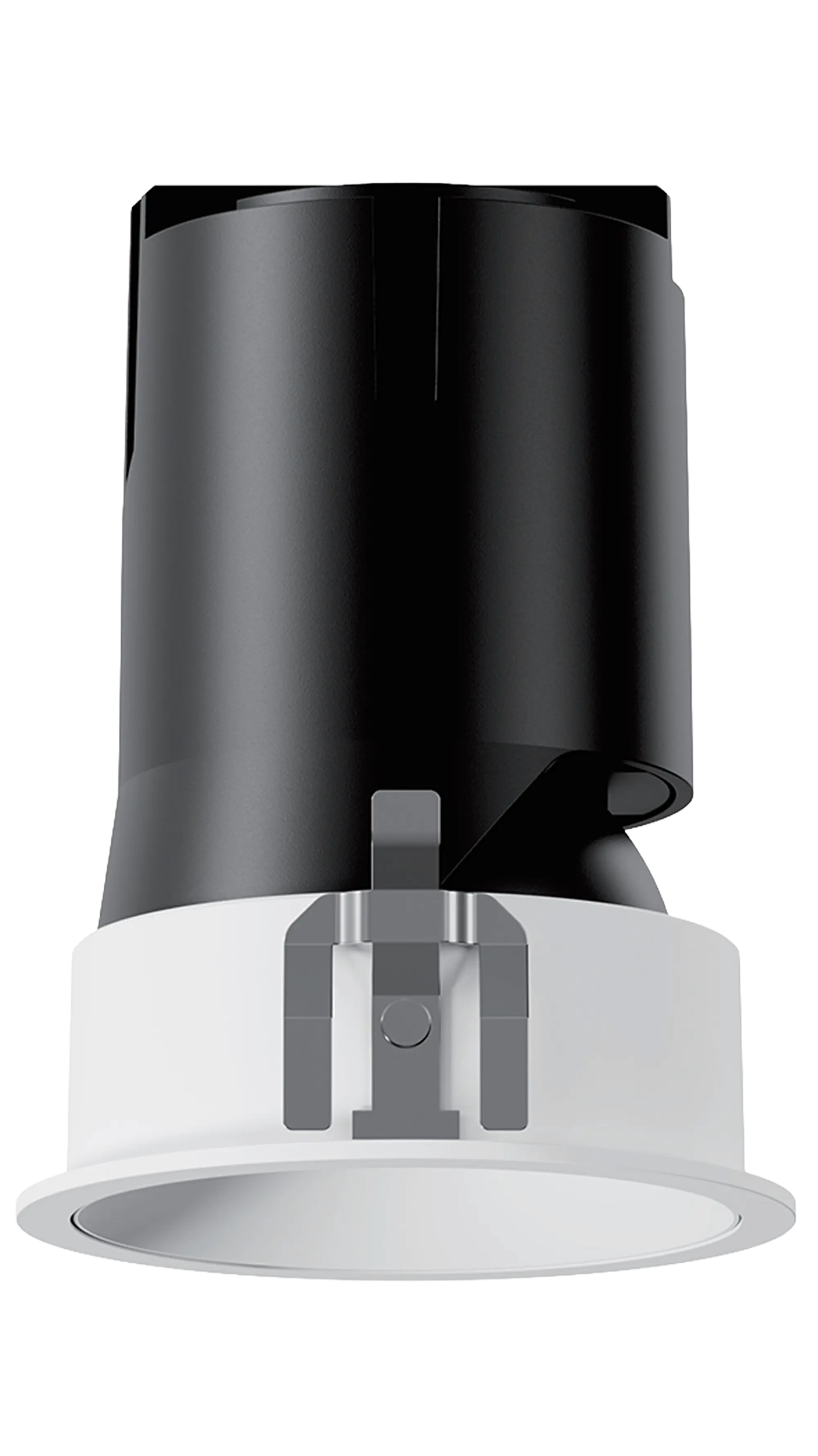

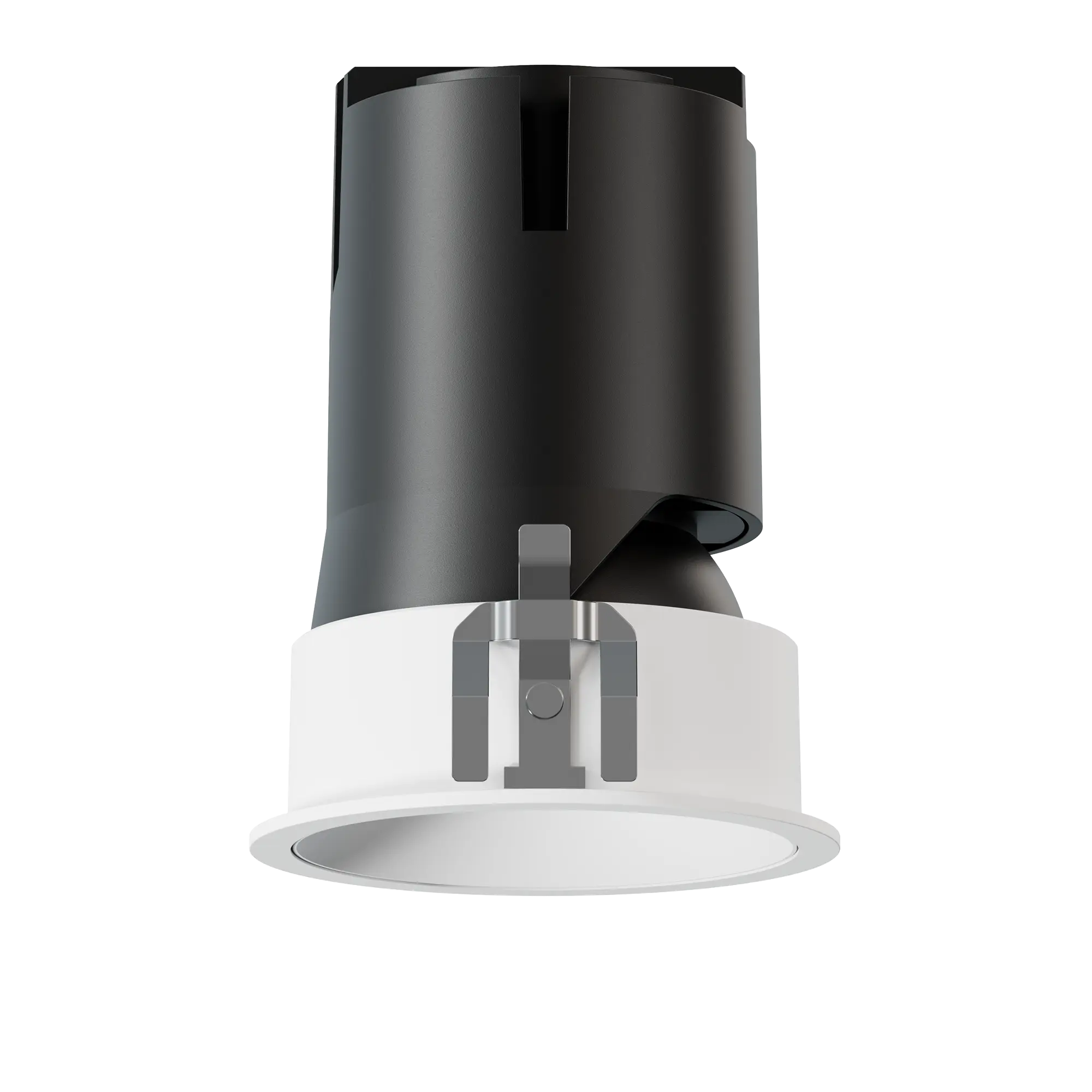

Recessed, adjustable ceiling downlight with 25 degree tilt and 360 degree rotation.
55, 75 or 95mm cut-out
Every Diffraxion downlight is built to order. Pick the fixture below, then set size, output, colour, optics and finish in the Project Builder.
32 to 95mm
Fixed downlights come in 32, 42, 52 and 62mm. Directional downlights use 55, 75 and 95mm cut-outs, and the protected downlight comes in 70 and 94mm.
300 to 4,500lm
Fixed downlights run from 300 to 1,000lm. Directional and protected downlights run from 600 to 4,500lm, with custom lumen packages available.
90 or 98 CRI
High efficiency 90CRI comes as standard. Full spectrum 98CRI is available on every fixture except the protected downlight.
2400K to 4000K, plus tunable
All downlights offer 2400K, 2700K, 3000K and 4000K. Directional and protected fixtures add 1800 to 4000K and 2700 to 6000K tunable white, with custom CCTs on request.
15 to 50 degrees, plus wall wash
Narrow 15, medium 24, wide 36 and flood 50 degree lenses, plus an asymmetric wall wash lens, across every fixture in the range.
Black, White or Custom
Black and white trims as standard, with custom trim finishes available across the range.
Narrow Flange or Plaster-In
Every downlight takes the narrow flange recessed trim. All except the protected downlight can also be specified plaster-in for a completely trimless finish.
Black, Silver, White or Custom
Black, silver and white reflectors as standard. Custom finishes, or no reflector, on directional and protected fixtures.
Eleven driver options
Non-dim, TRIAC, DALi and 0-10v analog through to DCNet, BubblyNet and Casambi wireless control, plus three hour emergency variants and custom drivers.
Glare control and protection
Directional downlights take honeycomb louvres, oval beam shaping filters and soft glass lenses, with an IP55 ingress kit available on the round directional fixture. Fixed and protected downlights take custom accessories on request.
Directional fixtures tilt 25 degrees and rotate a full 360.
The protected downlight is IP68 rated for bathrooms and exteriors.

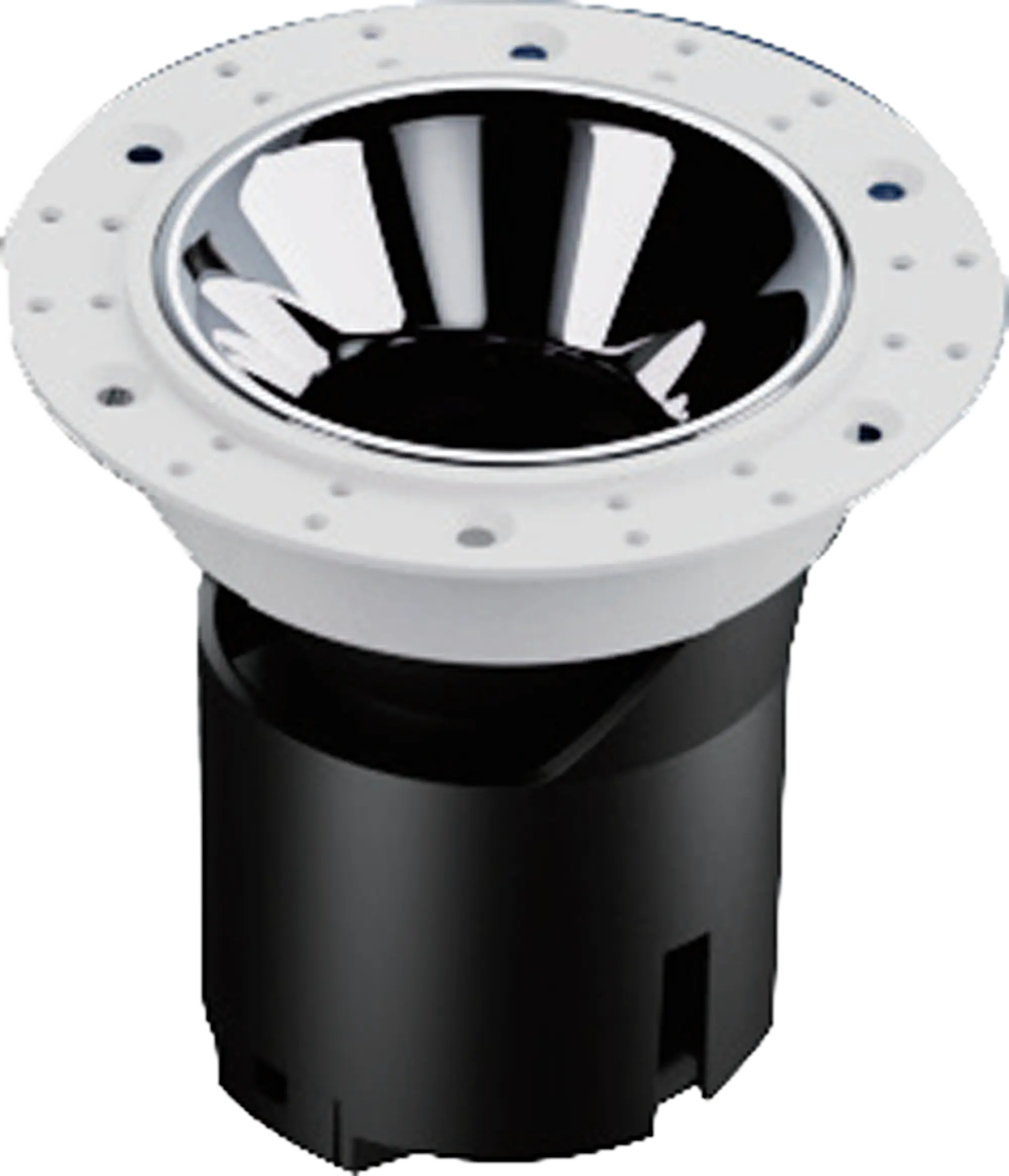

Plaster-in mounting gives a clean, trimless ceiling line.
1800 to 6000K tunable white across directional and protected fixtures.
Directional and fixed fixtures come in round and square trims.
+
Build your fixture in the online configurator, download the spec sheet, and send it to your local distributor. They handle pricing, lead times and delivery from there.
+
Yes. Every fixture page carries IES and LDT files for each diameter, lumen package and beam angle, free to download for your lighting calculations.
+
Yes. The configurator only shows options that work together, so incompatible combinations are filtered out as you build.
+
Yes. Add as many fixtures as you need to a single project and download one combined spec pack for the whole job.
Download the technical datasheet for each fixture in this range.
IES and LDT files for lighting design software, organised by fixture, output and beam angle.
